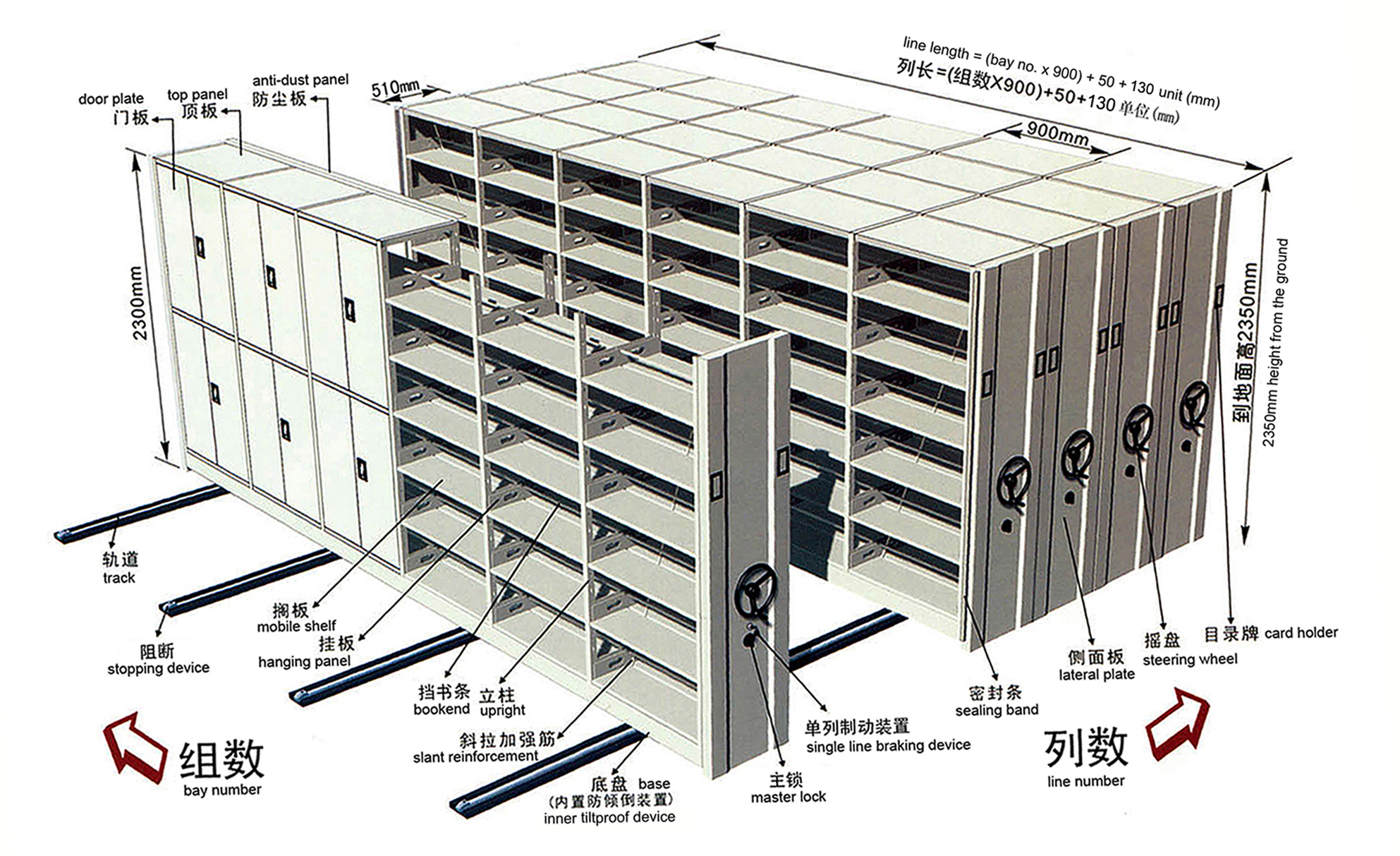

Dimension:               H2300*W900*D510mm

Material/Thickness: 1.0+1.5mm cold-rolled steel sheet

Surface finish:           electrostatic powder coating.This space can be used for additional storage

Production standard & regulation

1. Vertical movable rack
2. National archival bureau standard: DA/T7-92.
3. National standard:GB/T13667.3-92 manual movable rack technicalconditions.
4. GB/T13667.1 steel book shelf universal technical conditions.
5. The material meets GB710-88 cold-rolled steel sheet national standard.
6. Phosphorization and quality accord to GB6807-86(steel hardware phosphorization before painting).

• Material & workmanship

1. Thickness of steel sheet: Column:1.5mm Panel:1.2mm Hanging beam/floor shelf/clapboard/floor shelf/top/door:1.0mm.Chassis: 3.0cm made of cold-rolled steel sheet supplied by baosteel shanghai.
2.  Load: Clapboard load ≥800kg,max. Deflection<1.5mm after 24 hrs while full loading; within 2 hrs after uninstallation, the breakage won't occur, the disformation <0.2mm.Under condition of full load, the operation goes well, single hangle force will be under 11.8n. The master line will push the attachment lines forward. The every line is equiped with safe locating device and anti-return, auto-locking.

• Body structure:

1. The structure consist of chasis/column/clapboard/fittings. Easily disassembly, reliable.
2. The height of clapboard/hanging beam can be adjusted along the vertical direction. The hanging beam gap is 15-20mm,voucher cabinet hanging beam gap is 18mm. The bottom beam is equiped with anti-dump device.

• Functions

1. Transmission ratio: 1:5:5 ,luxury crank handle, folded.
2. Load:>600kg / m³
3. Space utilization:>82.8% / m³ .

• Driving device:

1. Mechanical auto-pulling system.
2. 3-level 2-shaft synchro drive
3. Chain & wheel standard: GB1135-89,GB1244-84(3r tooth type)
4. Material: 45# steel. Processed by punching, tempering, lathing, high frequency quenching HGC60-62,the surface finishes in anti-rust, which is patented.

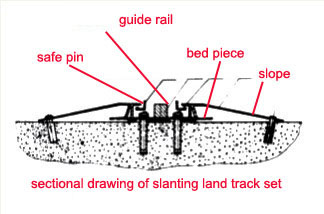

• The track 25mm×25mm zinc-plated solid square steel is weld with the track base made of steel sheet sized 3mm.
• The track is fixed with the floor by setscrew.
• Driving sytem adopts motocycle unique chain.
• Chain breaking force: 1800kg.
• Driving shaft dia.: 30mm solid round steel, twin-shaft driving.
•
